  • Tytuł: Koparka łańcuchowa mini DITCH WITCH MINIKOPARKA (numer 362924450)
  • Cena: 1,00 zł
  • Data wystawienia: 2008-05-13
  • Dane kontaktowe:
    Numer komórkowy (1)
Koparka łańcuchowa mini DITCH WITCH MINIKOPARKA

Treść aukcji:

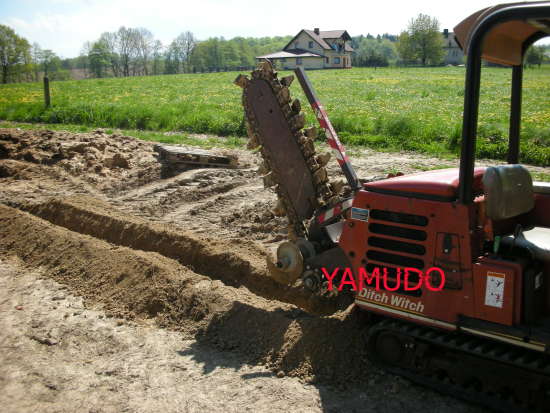

Koparka łańcuchowa

DITCH WITCH HT 25

 z opcja mini koparki, stan Bardzo Dobry !!

silnik Kubota Diesel, bardzo szczedny.

oraz SUPER rozwiazania!!! przewiertow pod drogami itp... na dlugosci 10m.

( minikoparka, trencher, minikop mini koparka)

ROK PRODUKCJI 2003
ILOSC GODZIN 450

STAN DOBRY Z PLUSEM!!
WIECEJ INFORMACJI TECHNICZNYCH W PONIZSZYM ZAŁACZNIKU:

http://www.ditchwitch.com/pdf/manuals/Ditch_Witch_HT25_Manual.pdf








SPECIFICATIONS, HT25
DIMENSIONS U.S. METRIC
Trench depth, max. 48 in 1.22 m
Angle of approach 19°
Angle of departure 18°
Trench width, max. 16 in 406 mm
Boom angle, down 53°
Boom angle, up 50°
Height, top of cab 80 in 2.03 m
Basic unit length, transport 120 in 3.05 m
Centerline of track, hub to hub 39 in 990 mm
Width, transport 35.5 in 902 mm
Width, center of tracks 26 in 660 mm
OPERATION U.S. METRIC
Vehicle Speeds
    Maximum transit forward 2.3 mph 3.7 km/h
    Maximum transit reverse 1.7 mph 2.7 km/h
Digging chain speed @ 3000 engine rpm 364 fpm 111 m/min
Headshaft speed @ 3000 engine rpm 180 rpm
Operating weight
w/ 3-ft (914 mm) boom, backfill blade, cab and A225 backhoe 4080 lb 1850.7 kg
w/ attachment frame, 6-in (157 mm) chain, and backfill blade 2660 lb 1206.5 kg
BACKFILL BLADE U.S. METRIC
4-way hydraulic lift, angle
Blade width 35.5 in 902 mm
Blade height 9.9 in 251 mm
Blade lift, above ground 30°
Blade drop, below ground 20°
Maximum swing angle, left/right 28°
Standard left auger
    Diameter 4 in 100 mm
    Length 13.5 in 343 mm
Standard right auger
    Diameter 10.5 in 267 mm
    Length 12.2 in 310 mm
Offset auger (optional)
    Diameter 10.5 in 267 mm
    Length 16.4 in 417 mm
POWER U.S. METRIC
Engine Kubota D1105-ES
Fuel Diesel
Cooling medium Liquid
Injection Indirect
Aspiration Natural
Number of cylinders 3
Displacement 68.6 in3 1.1 L
Bore 3.07 in 78.0 mm
Stroke 3.09 in 78.4 mm
Manufacturer's gross power rating (per SAE J1995) 26 hp 19.4 kW
Estimated net power rating (per SAE J1349) 24.5 hp 18.3 kW
Rated speed 3000 rpm
POWER TRAIN
Ground drive: Dual hydrostatic, infinitely variable from zero to maximum, hand-lever operated speed/direction control
Service brake: Ground drive speed/direction controls brake machine hydraulically when moved to neutral position
Parking brake: Disc, spring applied, hydraulic pressure-released
Tracks 230 x 39 x 72 fp
Trencher drive
    Transmission Belt drive through gearbox reduction
    Clutch Electric over hydraulic
FLUID CAPACITIES U.S. METRIC
Fuel tank 6 gal 22.7 L
Engine oil, with filter 4.5 qt 4.3 L
Engine cooling system 6 qt 5.7 L
Hydraulic system 10.1 gal 38.2 L
Hydraulic reservoir 8.7 gal 32.9 L
HYDRAULIC SYSTEM U.S. METRIC
Ground drive
    Pump capacity 11.8 gpm 44.9 L/min
    Pump relief Track slip
Auxiliary
    Pump capacity per track 6.7 gpm 25.2 L/min
    Pump relief 2320 psi 160 bar
BATTERY U.S. METRIC
Group 26
SAE cold crank rating @ 0° F (-18° C) 525 amps
SAE reserve capacity rating 85 min




KONTAKT +## ### ### ###

Wiecej informacji na @

ZAPRASZAM NA POZOSTAŁE MOJE



 Nie udzielam zgody na licytowanie, bez wczesniejszego uzgodnienia.
